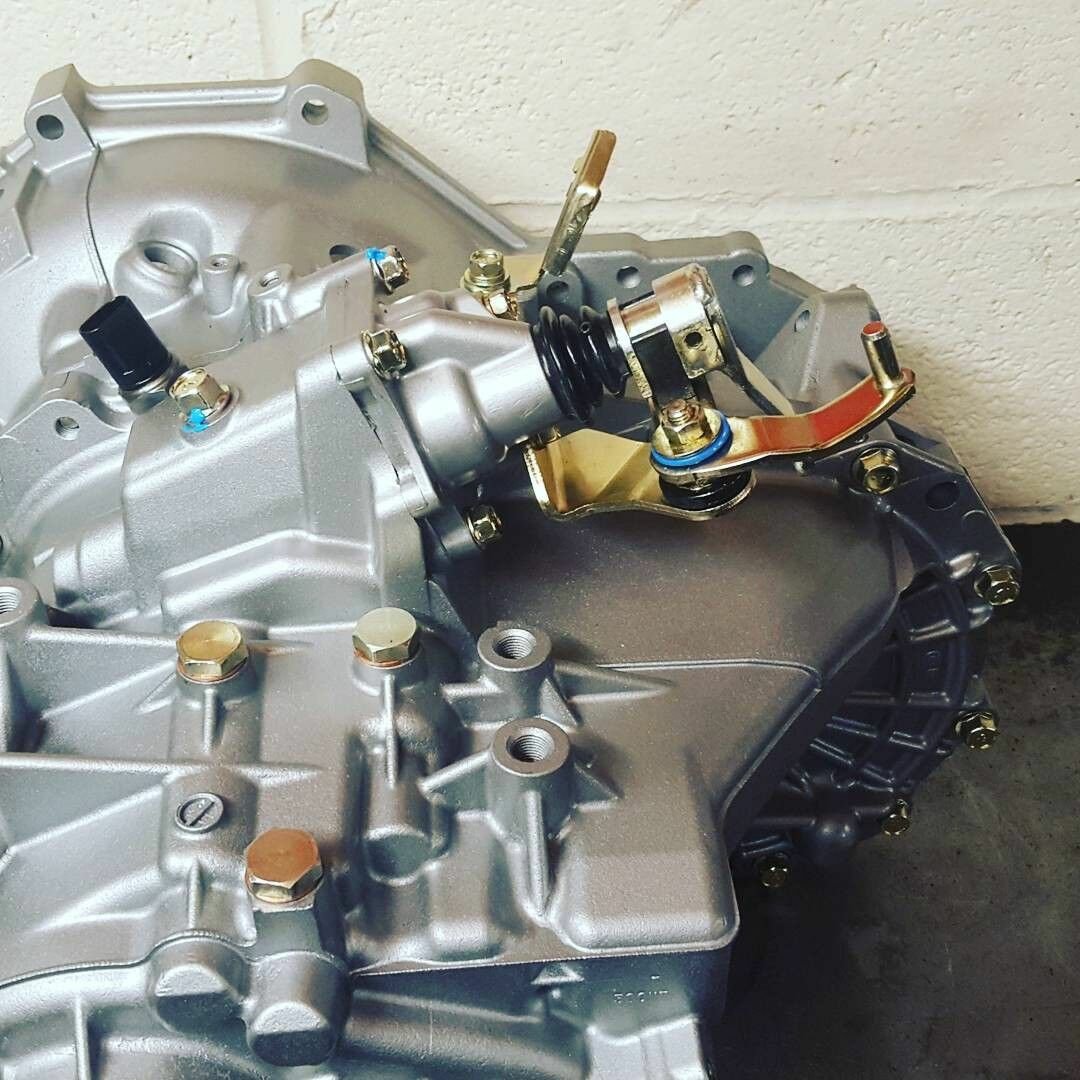

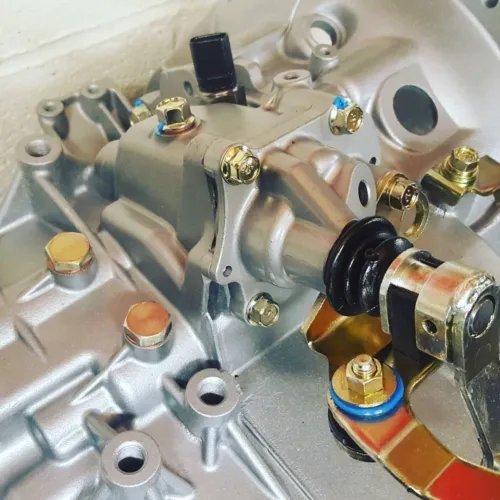

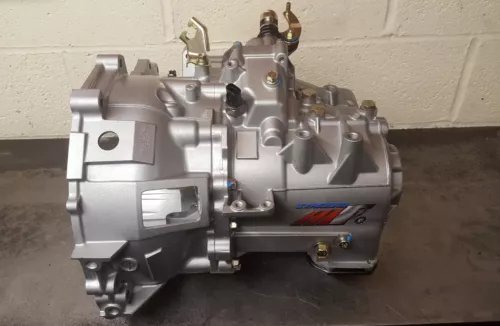

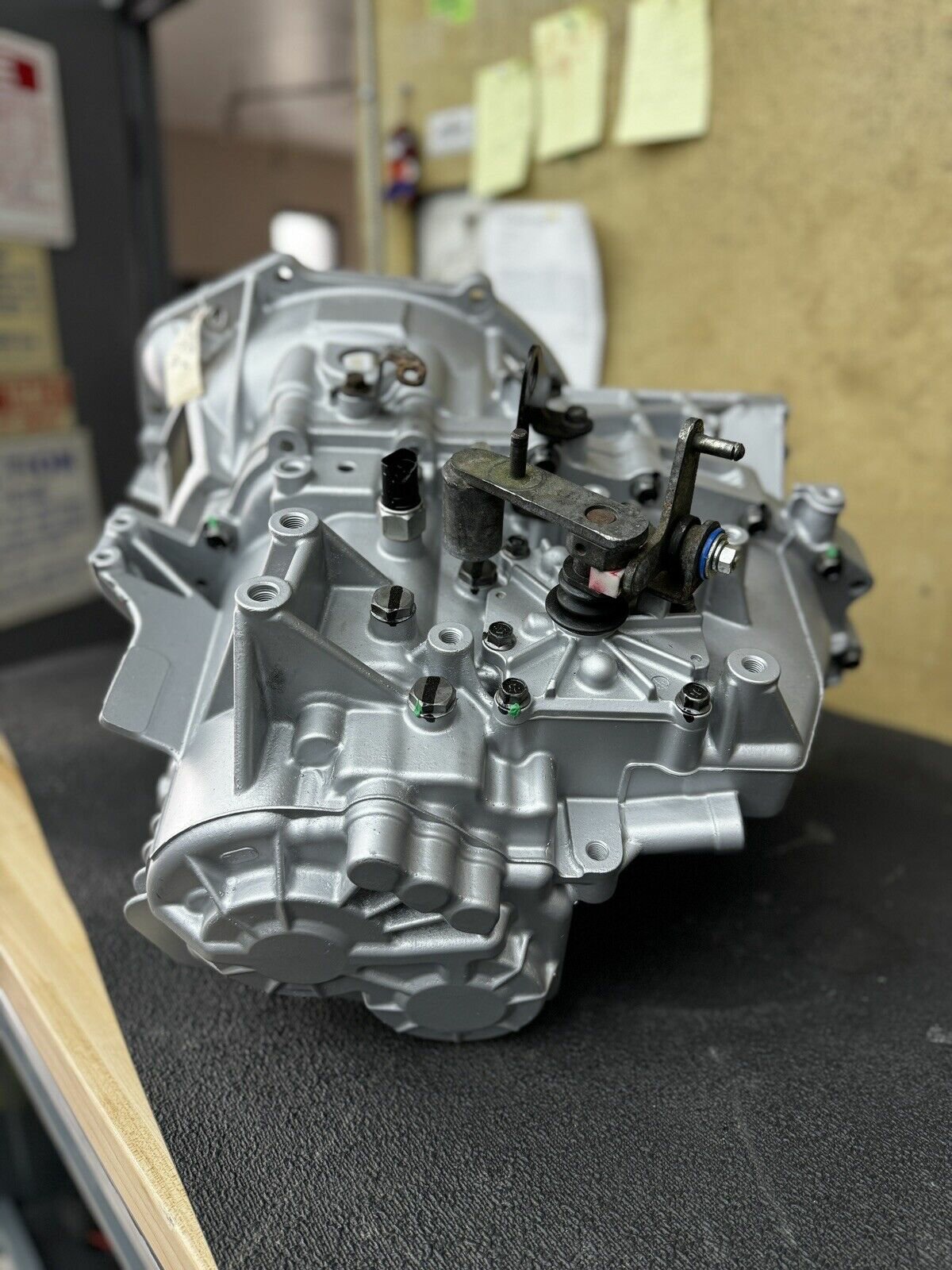

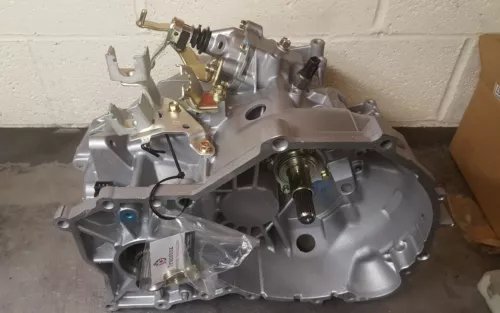

Remanufacted Mitsubishi Evolution Gearbox with upgraded and modified components
TO FIT:
All Mitsubishi Evolution models :-
Evolution 4
Evolution 5
Evolution 6
Evolution 7
Evolution 8
Evolution 9
COMPONENTS:
Full transmission rebuild parts included:-
Carbon fibre 1st gear triple bulk synchro rings
1st gear spring
1st/2nd sleeve updated
Carbon fibre 2nd gear bulk triple synchro rings
2nd gear spring
Carbon fibre 3rd gear double synchro rings
3rd gear spring
3rd/4th sleeve updated
Carbon fibre 4th gear synchro ring
4th gear spring
4th gear if needed
Carbon fibre 5th gear synchro ring
5th gear spring
5th/-R sleeve updated
5th gear pair if needed
Reverse gear double synchro rings
Reverse gear spring
Input seal
Output seal
New upgraded input bearing front
New upgraded input bearing rear
New roll pins and shift rails
Non consumables
3/4 Shift Fork
X5 Bearing sleeves
Thrust washers
X5 Genuine Needle rollers
Retaining snap lock
Snap rings
Internal oil seals
Output High load tail bearing
Output High load nose bearing

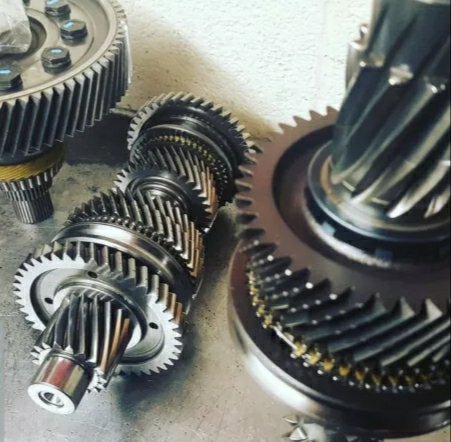

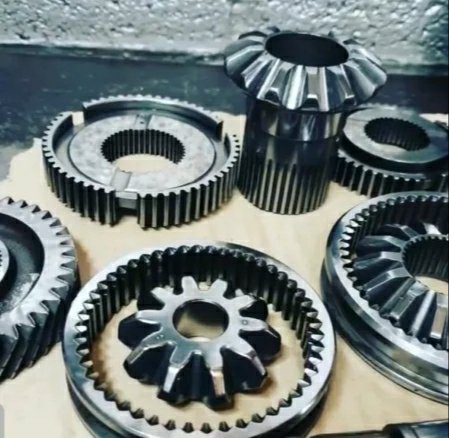

Full shot peening of main gears
Super finishing throughout ISO
Custom Ratio final drive (4.11)
Gearbox Codes E8/9
Speed drive gear 29/36i AT
Short/Mid/Long ratio set
DESCRIPTION:
(Stage 3 build)
What we offer in this transmission is the best of the best in terms of functionality, Strength and Durability. Specifically built for racing application allowing high torque and bhp throughout the drive set with substantially reduced fatigue resistance.

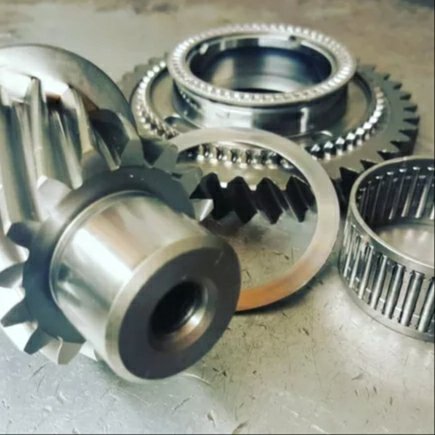

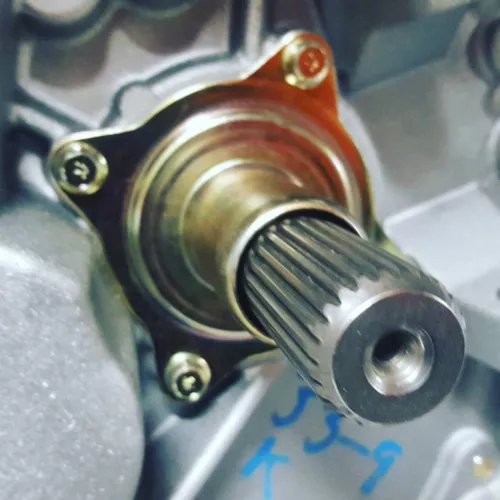

Quicker shifting is now possible along with 20 to 30% gain in strength due to Shot peening and REM Isotropic Super Finishing of the hubs and sleeves, shift rails and shift assembly along with adding cooler running Temps. All Synchronisation bulk ring are replace with custom modified carbon ones to give that extra bite at high rpm gear changes and Durability. The output shaft is replaced with a stronger Brena Corsa solid shaft to avoid damage to the transfer box.
The whole box is blue printed to confirm the correct mesh and tolerances for the best possible touch. Modified bearings are used throughout the build to cope with the added stress and load on the components along with new hardened steel thrust washers.
A modification can now be made to the dreaded input shaft bearing replacing it with a tapper bearing giving a tighter preload helping it to hold the shaft making the gears and input shaft stronger allowing more power to be sustained.
Input shaft failure is common on high torque Evo transmissions mainly we see fatigue on either the clutch radial splines or the 5th driven gear. With this in mind an alternative shaft is used along with added attention to detail when shot peening these areas, 3rd and 4th gear also under go the same treatment.
Modifications are made to the oiling system of the box to allow increased oil flow to the critical components along with a case modification to allow more oil to dump into the sump.
Upgrade to the 1st gear needle bearing is also added due to the high radial forces causing the gear to fail under heavy loads such as launches.
High Spec components used throughout offering the most enhanced build possible to make the transmission that lasts race after race.
The gear set and final drives are optional and can be configured to the customers requirements upon request .
1st gears available are as follows
EVO 8 pair 2.928:1
EVO 9 pair 2.785:1
2nd gear
EVO 9 pair 1.950
3rd gear
EVO 8 pair 1.407
EVO 9 pair 1.444
4th gear
EVO 8 pair 1.031
EVO 9 pair 1.096
5th gear
EVO 8 pair 0.720:1
Final Drives can be configured with
OE 4.529:1 or 4.111:1
HKS 4.111:1
Other options available on request.
We have now produced many Stage 3 boxes all in vehicles running from 550 ft lbs to 730 ft lbs torque.
This specific gearbox comes with a High load top bearing, internal conduit oil canal and oil gantry modification. This in turn allows a more reliable, efficient and constant supply of oil to key area’s within the transmission. The higher load bearing allows a higher thrust and torque load to be added to the Drivetrain.
The next step is to make the reservoir plate removable, the reason we do this is to give access to the internal oil ways, this helps to remove any excess swarf or contamination build up throughout the life of the transmission and also allows servicing, we add security torque bolts to lock the plate in place. We can now service the chamber’s this is a great for end of session servicing.
Now we add a Neodymium Magnet these free energy magnets are very strong and will be sure to stop any unwanted contaminants entering the vital components.
This is just one of many modifications we offer to make sure that you are getting the absolute best in terms of results and performance.
So you can feel assured that you are getting the most comprehensive gearbox available.
We have many options in respect to mods, up rated/improved parts, and processes.
WORKMANSHIP:
The workmanship and attention to detail that goes into one of our gearbox builds is bar non you will not find any corners cut here. We pride our selves on our gearbox builds not only internal but external and guarantee our boxes.
All preload shims custom ground in house to a 1 micron tolerance. Gear contact mesh checked throughout with gear detailing available upon request. A properly rebuilt automotive part.
Rebuild includes full strip and cleaning of internal oiling system, with modifications to increase oil flow.
The item has been completely disassembled, cleaned and examined for wear and breakage. Worn out, missing or non-functioning components have been replaced with new or rebuilt components. It is the functional equivalent of a new part and is virtually indistinguishable from a new part.
WARRANTY:
We’ll also guarantee our work for 1 years, or 12,000 miles (whichever comes first) on fitted gearboxes, 6 months / 6,000 miles on ‘take-away’ units and 3 months for all auxiliary parts.
